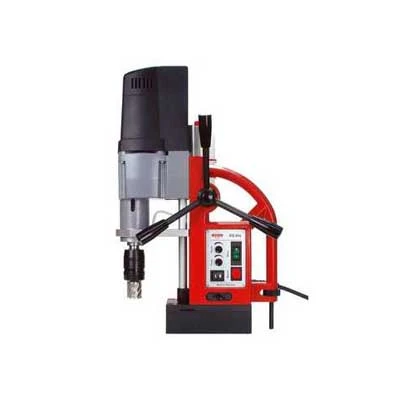

Ruko RS40e, Magnetic Base Drill Electric Magnetic Drill (12MM – 100MM)

Ruko RS 40e comes under the Magnetic-Stand Drilling machines category. The magnetic-stand makes horizontal, vertical or overhead work possible. The machine’s compact, light constructions makes it extremely versatile and easily portable. An electronic protective switch prevents inadvertent operation until the magnet has been switched on. The machine is equipped with a safely cut off if the magnet fails due to outside influences.

Ideal for use in steel construction, industrial building, engineering, terotechnology, ship-building, bridge construction, crane building and assembly work in metalworking shops.

Technical data:

• Mag. clamping force : 13.000 N
• Power Consumption : 1.840 Watt
• Gears : 2 gear electrical
• Rotation Speeds r.p.m : 60-140 / 200-470 r.p.m
• Electrical rotation controller : Yes
• Torque controller : Yes
• Right-left-handed rotation switch : Yes
• Height : 450,0 – 640,0 mm
• Width : 190,0 x 90,0 mm
• Weight : 21.5 kg
• Lift : 190,0 mm
• Adapter : Morse taper MT 3
• Core Drill : 12,0 – 100,0 mm
• Drill Chunk : 3,0 – 16,0 mm
• Twist drills DIN 338 : max 16,0 mm
• Twist drills DIN 1897 : max 16,0 mm
• Twist drills DIN 345 : max 31,5 mm
• Cutting dept core drills : 30,0 / 50,0 mm
• Input voltage : 220 – 240 V (Available 110 V)
• Conformity with : VDE, CEE
• Moveable field : +/- 7,5 mm
• Turn field : +/- 20 degrees
• Thread cutting : Yes
• Extra support : Yes

What’s In the Box!

• Carrying case in steel case
• Drill drift
• Safety belt
• Drill chuck 3,0 – 16,0 mm
• Spike cone MT3/ B16
• Cooling bottle + holder
• Operating instruction



Color: Red

Weight(KG): 1.000
